Materials and products used outdoors are continuously exposed to sunlight, heat, moisture, and changing environmental conditions. Over time, this exposure can cause colors to fade, surfaces to deteriorate, plastics to crack, coatings to lose their appearance, and other materials to experience performance changes.

For manufacturers, it is important to understand how products may respond to long-term environmental exposure before they reach customers. Accelerated weathering testing provides a practical way to evaluate material durability under controlled laboratory conditions. A LIB Industry xenon arc test chamber is designed to simulate important aspects of natural sunlight and weathering conditions for this type of evaluation.

What Is a Xenon Arc Test Chamber?

A xenon arc test chamber is an environmental testing system that uses a xenon arc light source to reproduce characteristics of natural sunlight. The system can combine controlled light exposure with temperature and moisture conditions to accelerate the weathering process.

During testing, material specimens are placed inside the chamber and exposed to controlled radiation for a defined period. Depending on the test procedure, the samples may also experience water spray or humidity cycles.

The objective is to observe how materials respond to simulated environmental exposure.

Typical changes evaluated during xenon testing include:

• Color fading
• Gloss loss
• Surface cracking
• Yellowing
• Chalking
• Brittleness
• Coating degradation
• Physical deterioration

This information can help manufacturers compare materials and improve product formulations.

Why Is Xenon Arc Testing Important?

Natural weathering can take a long time. A product intended to last several years outdoors cannot always be evaluated simply by waiting for years of exposure.

Accelerated weathering testing allows manufacturers to expose samples to controlled environmental stresses in a laboratory.

This can support product development by helping engineers:

• Compare different materials
• Evaluate protective coatings
• Investigate color stability
• Study polymer degradation
• Assess outdoor durability
• Identify formulation weaknesses
• Improve product quality

For example, a manufacturer developing an outdoor plastic component could test several material formulations under the same xenon arc conditions. Differences in fading, cracking, or surface deterioration can then be compared.

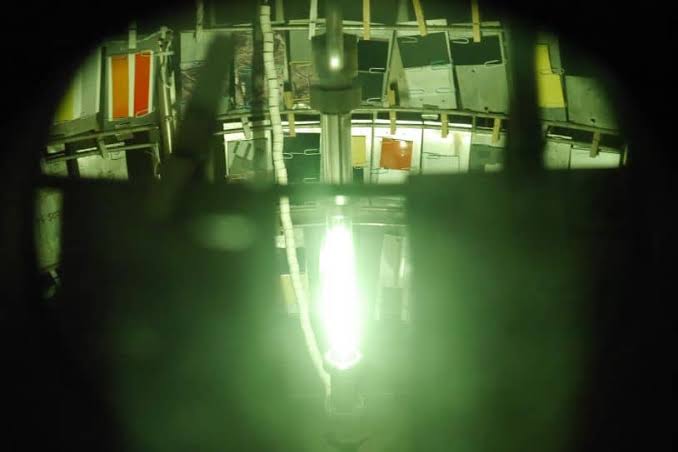

How Does Xenon Arc Testing Work?

The xenon arc lamp produces light with a spectrum that can approximate important characteristics of natural sunlight. Filters are used to control the spectrum reaching the test specimens.

The chamber can also regulate environmental conditions such as temperature and humidity. Depending on the selected testing method, samples may be exposed to cycles of light, darkness, moisture, and water spray.

The combination of radiation and environmental conditions accelerates weathering-related changes.

Testing parameters should be selected according to the applicable standard and the material being evaluated. Different products may require different irradiance levels, temperature settings, humidity conditions, and exposure cycles.

Materials Commonly Tested

Xenon arc weathering is suitable for evaluating many types of materials and finished products.

Plastics and Polymers

Many plastic products are exposed to sunlight during normal use. Ultraviolet radiation can cause discoloration, embrittlement, cracking, and other changes.

Xenon testing can help manufacturers compare different polymer formulations and additives.

Automotive Materials

Vehicle interiors and exteriors can experience sunlight, heat, and moisture. Manufacturers may use accelerated weathering tests to evaluate dashboards, exterior plastics, coatings, textiles, and other components.

Paints and Coatings

Color retention and surface durability are important characteristics of paints and protective coatings. Xenon exposure can help manufacturers assess changes in color, gloss, and surface appearance.

Textiles

Outdoor fabrics and other textile materials may fade when exposed to sunlight. Controlled weathering tests can provide comparative information about color stability and material durability.

Building Materials

Roofing materials, siding, outdoor panels, sealants, and other construction products can experience long-term environmental exposure. Accelerated weathering can support development and quality-control programs.

Key Testing Parameters

Reliable weathering testing requires control over several environmental factors.

Light Intensity

The intensity of xenon radiation affects the rate at which specimens are exposed to simulated sunlight. Stable irradiance helps maintain consistent testing conditions.

Temperature

Temperature can influence material degradation. Chambers therefore need to monitor and control relevant temperature conditions during testing.

Humidity

Moisture can interact with radiation and temperature to influence weathering. Controlled humidity can help reproduce specified environmental cycles.

Water Spray

Some weathering procedures incorporate water spray or condensation. These cycles can help evaluate the effects of moisture on coatings and other materials.

Exposure Cycles

Weathering tests may alternate between light and dark periods or between dry and wet conditions. The selected cycle depends on the applicable standard and testing objective.

Standards for Xenon Arc Testing

Standardized procedures are important when comparing weathering results. Different industries use specific standards to define exposure conditions and evaluation methods.

Common standards associated with xenon arc weathering include ASTM G155 and ISO 4892-2. These standards provide guidance for laboratory exposure of materials to xenon-arc light sources.

The exact procedure should be selected according to the material and intended application. Testing conditions should not be chosen simply based on a generic exposure time because different materials can respond differently to radiation and moisture.

Benefits of Accelerated Weathering

One of the primary advantages of xenon arc testing is controlled acceleration.

Natural weathering is affected by geographical location, season, weather patterns, pollution, humidity, and many other variables. Laboratory testing reduces some of this variability by providing controlled exposure conditions.

Benefits can include:

• Faster material comparisons
• Controlled exposure conditions
• Repeatable laboratory testing
• Early identification of degradation
• Support for product development
• Improved coating selection
• Quality-control assistance

However, accelerated weathering should be interpreted carefully. Laboratory exposure does not necessarily provide a direct prediction of the exact outdoor service life of every material.

Selecting a Xenon Arc Test Chamber

When choosing equipment, manufacturers should first determine their testing requirements.

The chamber should provide suitable control over radiation, temperature, humidity, and moisture according to the relevant test procedure.

Other considerations include:

Sample capacity: Determine how many specimens need to be tested simultaneously.

Light-source performance: Consider irradiance control and monitoring capabilities.

Environmental control: Check temperature and humidity control requirements.

Water system: If wet cycles are required, evaluate spray and water-management systems.

Controller: A programmable control system can simplify long-duration testing.

Maintenance: Consider lamp replacement, cleaning, calibration, and general service requirements.

Safety: The system should include appropriate operational and protective features for laboratory use.

Applications Across Industries

Xenon arc testing can be valuable for manufacturers whose products are exposed to sunlight or outdoor environmental conditions.

Automotive manufacturers can investigate the durability of vehicle materials and finishes. Coating companies can compare formulations. Plastic manufacturers can study color and physical stability. Textile companies can evaluate fading resistance. Construction-material suppliers can assess outdoor product performance.

Research laboratories can also use xenon testing to compare new formulations and investigate degradation mechanisms.

LIB Industry Xenon Arc Test Chamber

Companies searching for a LIB Industry xenon arc test chamber can review the manufacturer’s xenon chamber solutions for accelerated weathering applications.

LIB Industry provides environmental test equipment designed to simulate different environmental conditions, including accelerated weathering. Its xenon chamber product range is intended for controlled testing of materials and products exposed to simulated sunlight and related environmental stresses.

For specifications, chamber configurations, and technical information, visit the LIB Industry xenon arc test chamber  product page.

Conclusion

Xenon arc testing provides manufacturers with a controlled approach to studying how materials respond to simulated sunlight and environmental exposure. By combining xenon radiation with controlled temperature, humidity, and moisture conditions, laboratories can accelerate weathering-related changes and compare material performance.

When selecting a xenon arc chamber, manufacturers should consider applicable standards, light-source control, sample capacity, environmental conditions, water systems, safety features, and maintenance requirements.

With an appropriate testing system and well-defined procedure, accelerated weathering testing can become an important part of product development, material selection, and quality assurance.
